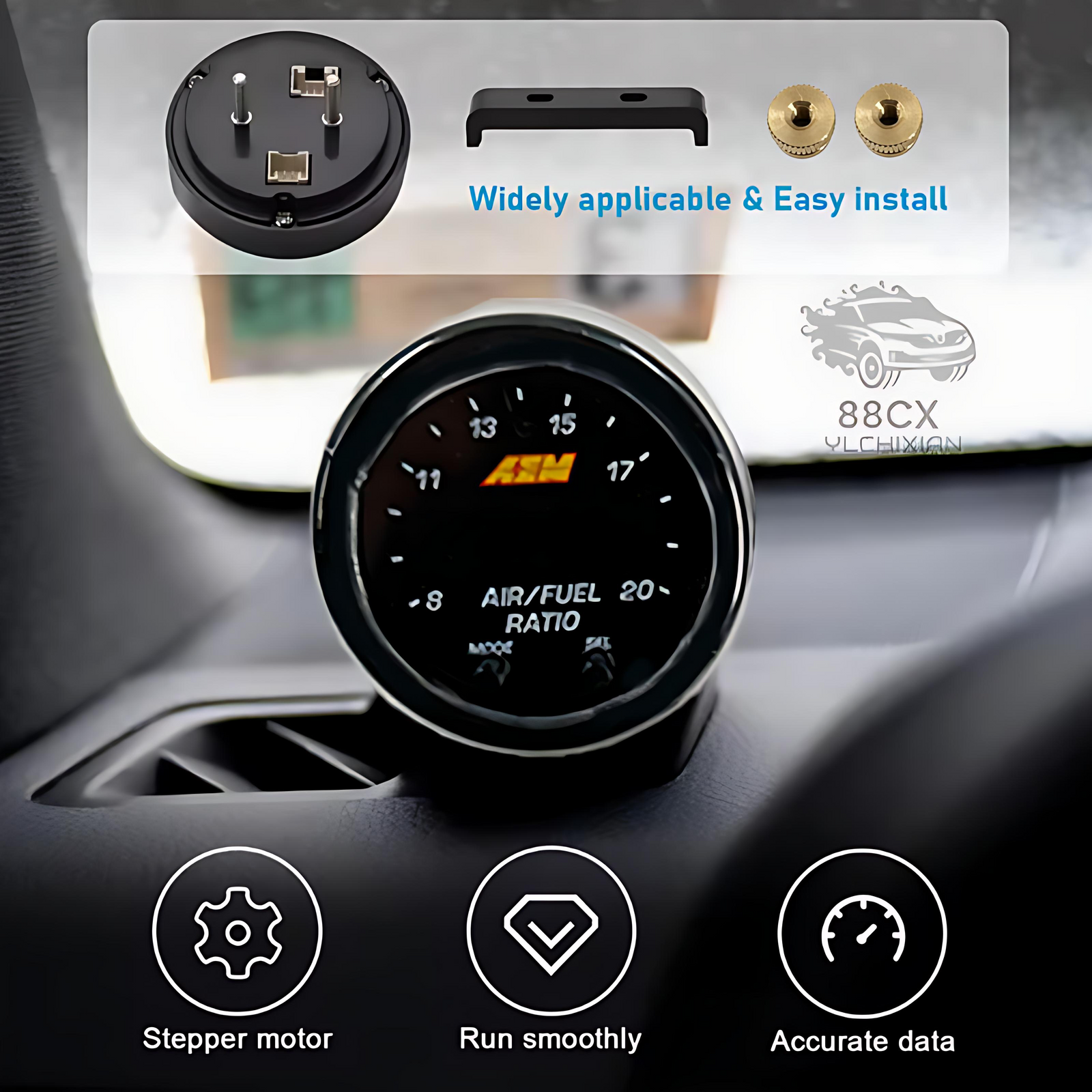

AEM 30-0300 X-Series Wideband Gauge A/F AF O2 Air Fuel Ratio comes with Sensor
Description
The UEGO gauge will indicate changes in the air/fuel ratio in real time, which is essential when you aim to perform safer, more powerful and accurate engine tuning.
Specifications:
52mm(2-1/16") Diameter Mounting
Compatible with Vehicle/System Voltages up to 16V
0-5V Analog Output
Serial RS-232 Output
20ms Typical Response
8.0:1 to 20.0:1 AFR / 0.55 to 2.00 Lambda
Configurable 3 or 4 Digit Precision Display Modes
Configurable AFR, Lambda or O2% Display Modes
Free Air or Resistor Trim Calibration Modes
Auto Dimming Feature
Gledewen Wideband UEGO Air Fuel Ratio
Gauge Kit Includes:
1 * UEGO Gauge
1 * Wideband Oxygen Sensor
1 * PWR/IO Cable
1 * Sensor Harness
4 * Butt Connectors
1 * Silver Nut
Usage Steps
1. Connect Harness A to Port A.
2. Connect Harness B to Port B.
3. Connect the other end of Harness B to the sensor.
4. The other end of Harness A has a red wire for the positive terminal and a black wire for the negative terminal.
5. Connect to a 12V power supply. The instrument will start working, with a working voltage of 12V.
6. The dashboard has a setting and selection button, allowing for 8 function switches.
7. In the 4-digit mode, press the left button to switch to the 3-digit mode. Press the select button to confirm, which will change to 3-digit mode. Keep pressing to switch to the initialization mode or air-fuel ratio mode.
8. Change to CAN mode for engine combustion ratio calibration and adjustment. This can increase the combustion ratio and improve engine efficiency.
